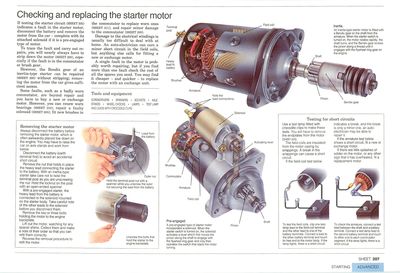

If testing the starter circuit (See Checking the starter circuit) indicates a fault in the starter motor, disconnect the battery and remove the motor from the car - complete with its attached solenoid if it is a pre-engaged type of motor.

An inertia type starter motor Terminalpost Heavylead tobattery Balais Armature Field coil Arbre Pignon Bendix gear

An inertia type starter motor

An inertia-type starter motor is fitted with a Bendix gear on the shaft from the armature. When the started switch is turned on, the motor rotates rapidly, the shaft turns, and the Bendix gear screws the pinion along a thread until it engages with they flywheel ring gear on the engine.

A pre-engaged starter motor Note the leadconnections Solénoïde Activating lever Arbre Pignon Field coil Armature Commutateur Balais

A pre-engaged starter motor

A pre-engaged type of starter motor incorporates a solenoid. When the started switch is turned on, the solenoid activates a lever which first moves the pinion along the shaft to engage with the flywheel ring gear and only then operates the switch that starts the motor turning.

To trace the fault and carry out repairs, you will nearly always have to strip down the motor (See Stripping the starter motor), especially if the fault is in the commutator or brush gear.

This video course is the best way to learn everything about cars.

Three hours of instruction available right now, and many more hours in production.

  • 4K HD with full subtitles
  • Complete disassembly of a sports car

However, the Bendix gear of an inertia-type starter can be repaired (See Replacing the Bendix gear) without stripping; removing the motor from the car gives sufficient access.

Some faults, such as a badly worn commutator, are beyond repair and you have to buy a new or exchange motor. However, you can renew worn bearings (See Stripping the starter motor).

Damage to the electrical windings is usually too difficult to deal with at home. An auto-electrician can cure a minor short circuit in the field coils, but anything else calls for fitting a new or exchange motor.

A single fault in the motor is probably worth repairing, but if you find more than one fault check the cost of all the spares you need. You may find it cheaper - and quicker - to replace the motor with an exchange unit.

Removing the starter motor

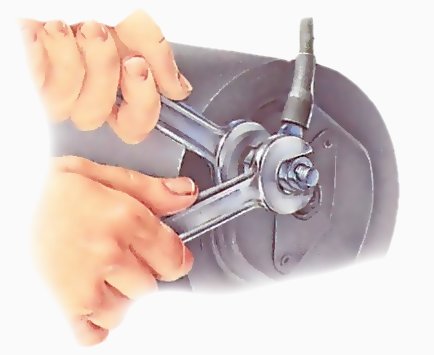

Lead fromthe battery Outer nut

Hold the terminal-post but with a spanner while you unscrew the outer nut securing the lead from the battery.

Always disconnect the battery before removing the starter motor, which is often awkwardly placed low down on the engine. You may have to raise the car on axle stands and work from below.

Disconnect the battery (earth terminal first) to avoid an accidental short circuit.

Remove the nut that holds in place the heavy lead connecting the starter to the battery. With an inertia-type starter take care not to twist the terminal post as you are unscrewing the nut. Hold the locknut on the post with an open-ended spanner.

Unscrew the bolts that hold the starter to the engine backplate.

With a pre-engaged starter, the heavy lead from the battery is connected to the solenoid mounted on the starter body. Take careful note of the other leads to the solenoid before you disconnect them.

Remove the two or three bolts holding the motor to the engine backplate.

Lift out the motor, watching for any spacer shims. Collect them and make a note of their order so that you can refit them correctly.

Reverse the removal procedure to refit the motor.

Testing a motor for short circuits

Use a test lamp fitted with crocodile clips to make these tests. You will have to remove the endplates from the motor.

The field coils are insulated from motor casing by wrappings. A break in the wrappings can cause a short circuit.

If the field-coil test below indicates a break, and the break is only a minor one, an auto electrician may be able to repair it.

If the armature test below shows a short circuit, fit a new or exchange motor.

If there are little splashes of solder on the motor, or any other sign that it has overheated, fit a replacement motor.

To check the field coils, clip one test lamp lead to the field-coil terminal and the other lead to one of the battery terminals. Connect a lead to the other battery terminal and touch its free end to the motor body. If the lamp lights, there is a short circuit.

To check the armature, connect a test lead between the shaft ans a battery terminal. Connect a test lamp lead to the secondary battery terminal and touch its other end to each commutator segment. If the lamps light, there is a short circuit.
