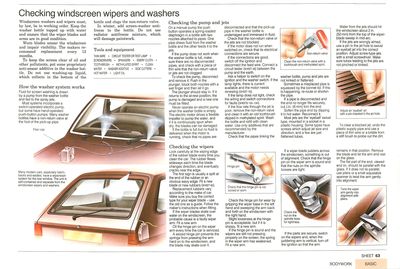

How the washer system works

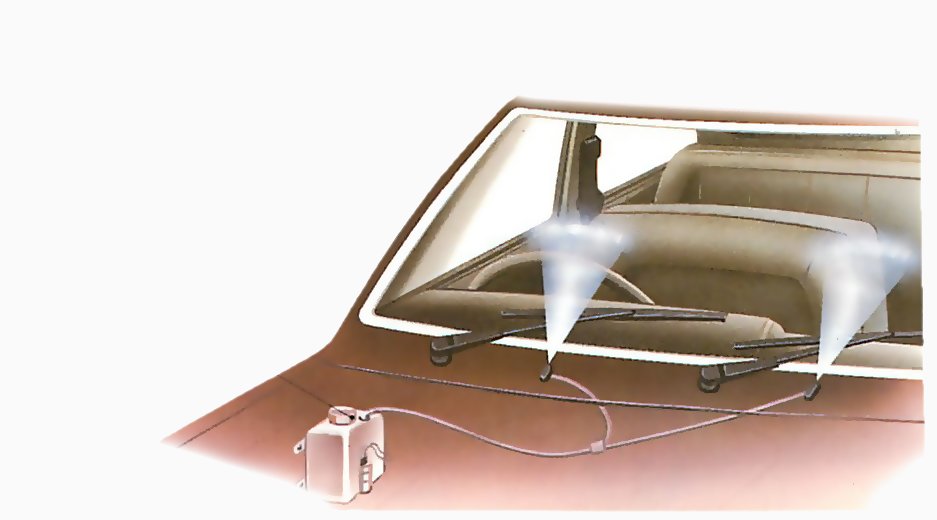

Fluid for screen washing is drawn by a pump from the washer bottle and fed to the spray jets.

Most systems incorporate a switch-operated electric pump, but some have hand-operated push-button pumps. Many washer bottles have a non-return valve at the foot of the pick-up pipe.

Windscreen washers and wipers must, by law, be in working order. Keep the washer bottle topped up with water and ensure that the wiper blades and arms are in good condition.

Worn blades smear the windscreen and impair visibility. The makers recommend replacement every 12 months.

Many modern cars, especially hatch-backs and estates, have a wipe/wash system for the rear window. The unit is self-contained and separate from the windscreen wipers and washers.
