The Varajet carburettor used on many Vauxhalls and Opels is a hybrid between fixed-jet and variable-jet (for example, SU) types. It is as sensitive to dirt and sediment as any fixed-jet carburettor, and needs careful cleaning about once a year.

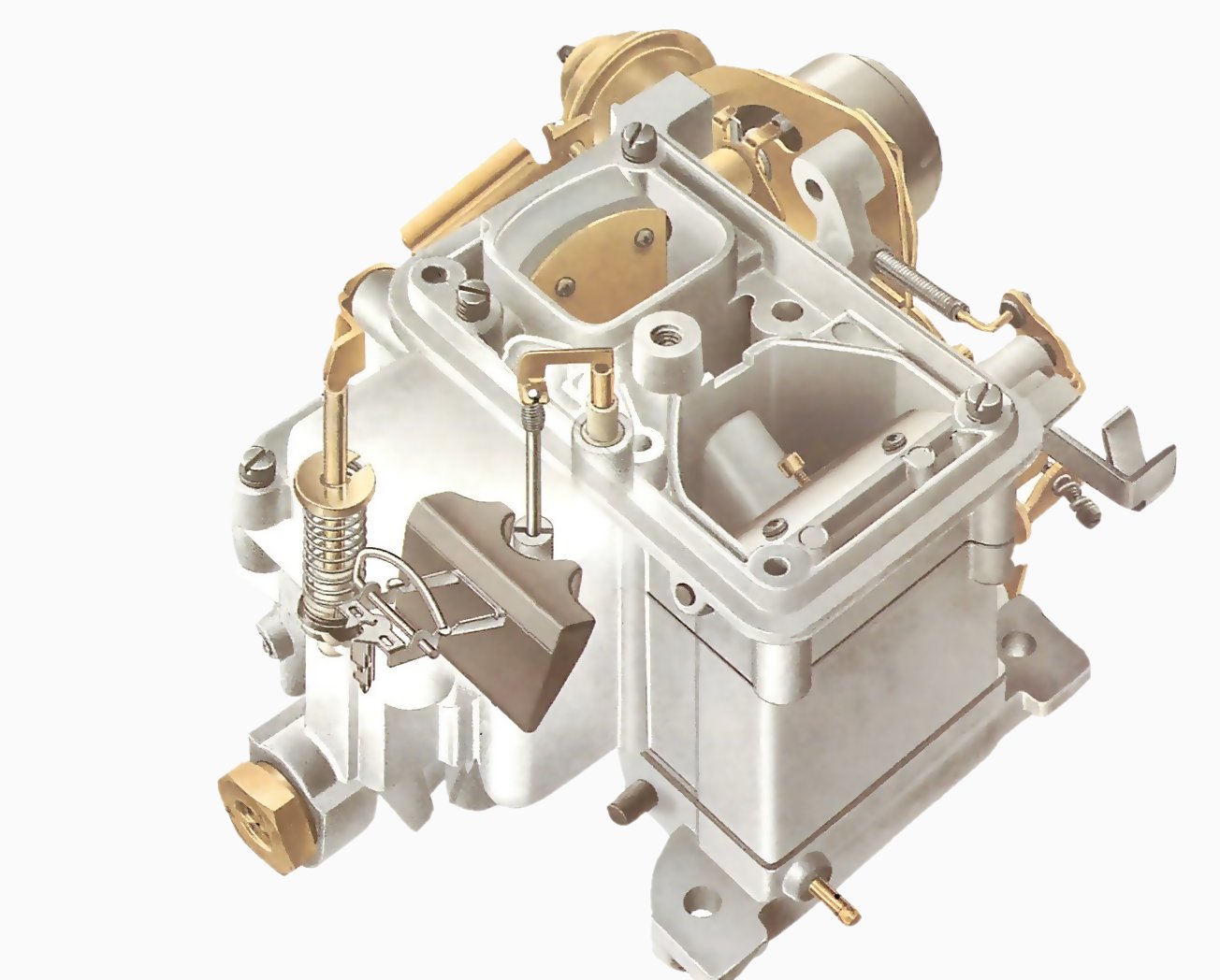

GM Varajet carburettor Primary choke Partial-loadneedle Pompe del'accélérateur Needle valve Petrol intake Float and float chamber Vacuum pipe Secondarychoke Throttle-to-chokelinkage Automatic choke control

GM Varajet carburettor

The Varajet combines the operation of a variable-jet carburettor with that of a fixed-jet model. To keep the best performance, it needs a regular overhaul. You need no special tools, but take care to use screwdrivers which fit the screw heads correctly.

The Varajet has two chokes or barrels. The first, which works alone at low engine speeds, has a fixed-jet system. The second, which comes in at higher speeds, has a variable jet.

As with any carburettor, remove it from the car (See Removing a carburettor for cleaning) for cleaning. Wash parts in petrol, using lint-free rags to wipe them. Renew all gaskets. After reassembly, oil the external moving parts.

This video course is the best way to learn everything about cars.

Three hours of instruction available right now, and many more hours in production.

  • 4K HD with full subtitles
  • Complete disassembly of a sports car

The carburettor has the layout of a normal fixed-jet type, and is dismantled in much the same way.

Take the same precautions against dirt and the loss of small parts (See Checking and cleaning a fixed-jet carburettor). Make notes or drawings of any parts dismantled, to aid refitting.

Try not to disturb the settings of adjuster screws, but if you do, ensure that you return them to their original setting by counting the number of turns taken to remove them.

Stripping the body.

Straighten the split pinand pull it out. Pull the plastic clipand cap off thechoke linkage.

Disconnect the linkage between the throttle and the choke by straightening the split pin and pulling it out. Use a new split pin when you reassemble.

Remove the screws holding on the top and lift it off. Unlike most modern fixed-jet carburettors, the float is not hung from the top, and so stays in place. Be careful not to bend the various tubes protruding from the bottom.

Remove the screws holding the top.

The accelerator pump, which has a spring under it, may jump out. If it does not, lift it out carefully. There is a ball under the spring which falls out when you turn the body over, so be ready to catch it.

There is also another, larger ball in the suction-valve spring housing next to the pump.

Lift the top off straight; take care not to catch any projections.

The accelerator pump has a spring under it which may cause it to shoot out if you are not careful.

This will not come out unless you take the screw out above it and extract the spring with very long-nosed pliers. Do not do this unless you have to inspect a broken spring or a blocked jet under the ball.

Peel off the old gasket, making a note of how it fits so that you can fit the new one in exactly the same way.

Rinsing out the float chamber

Take out the upper packing piece first. Free the float by removing the clip - which may be refitted either way round.

Lift out the upper packing piece. Examine the float valve to see how the valve spring hooks on to its platform.

Unhook the spring and remove the float pivot clip so that you can lift the float out. The needle will come too, hanging from the end of the float. Lift it off.

Lift out the second packing piece to leave the chamber clear.

Pull out the lower packing piece to leave the float chamber empty.

Rinse out the chamber with a little petrol and wipe it clean with a lint-free rag. Remove all sediment, but do not bother about surface staining.

Wipe out any sediment with a lint-free cloth.

When refitting the float, remember to hook the valve spring back into place. The float level is not adjustable.

As with any carburettor, the various parts are a precision-fit, and care must be taken to handle every part gently.

Before finally tightening the screws holding the carburettor top, ensure that the accelerator-pump piston moves freely.

Partial-load needle.

Push down the spring and lift the needle to free the link. Carefully lift the needle out. Look for minute grooves or bright spots which indicate wear on the needle.

This needle moves up and down in a drilling midway between the two barrels of the carburettor. It is moved by a piston beside it, connected by a link at the top.

The needle is very easily bent, so disconnect the link before removing either the needle or the piston.

Push down the spring under the ball head of the needle. Lift the head slightly to free the link. Push the link aside.

Unscrew the jet with a correct-fitting screwdriver.

Lift the needle out carefully. Unscrew the jet into which it fits using a snug-fitting screwdriver. Check both needle and jet for wear, which would cause erratic running and waste fuel. Signs of wear will show as minute groves in the jet or on the needle or bright spots on the side of the needle. Replace them if there is the slightest sign of wear, also if the needle is bent.

Lift out the jet with; check it and the needle for wear.

When replacing the needle, guide it carefully into the jet. Reconnect the link to the top of the piston.

Adjusting an automatic choke

Loosen the screws to adjust. Move to 'R' for cold weather.

The choke setting is adjustable for summer or winter. The adjustment is made by moving a pointer attached to the choke body along a graduated scale. An average setting for all seasons in Britain is one one mark to the right of the centreline. In very cold weather move the pointer further towards 'R' (rich) and in hot weather towards 'L' (lean). Loosen the three surrounding screws to make the adjustment and retighten them after changing the setting.

Take care to hook the bimetallic spring over the peg.

If you are dismantling the choke completely for cleaning, be sure on reassembly to fit the bimetallic spring inside, over the peg.
