The tension of the toothed belt that drives an overhead camshaft must be checked at the intervals set by the servicing routine laid down in the car handbook. Check it also whenever you remove and refit the belt or the cylinder head.

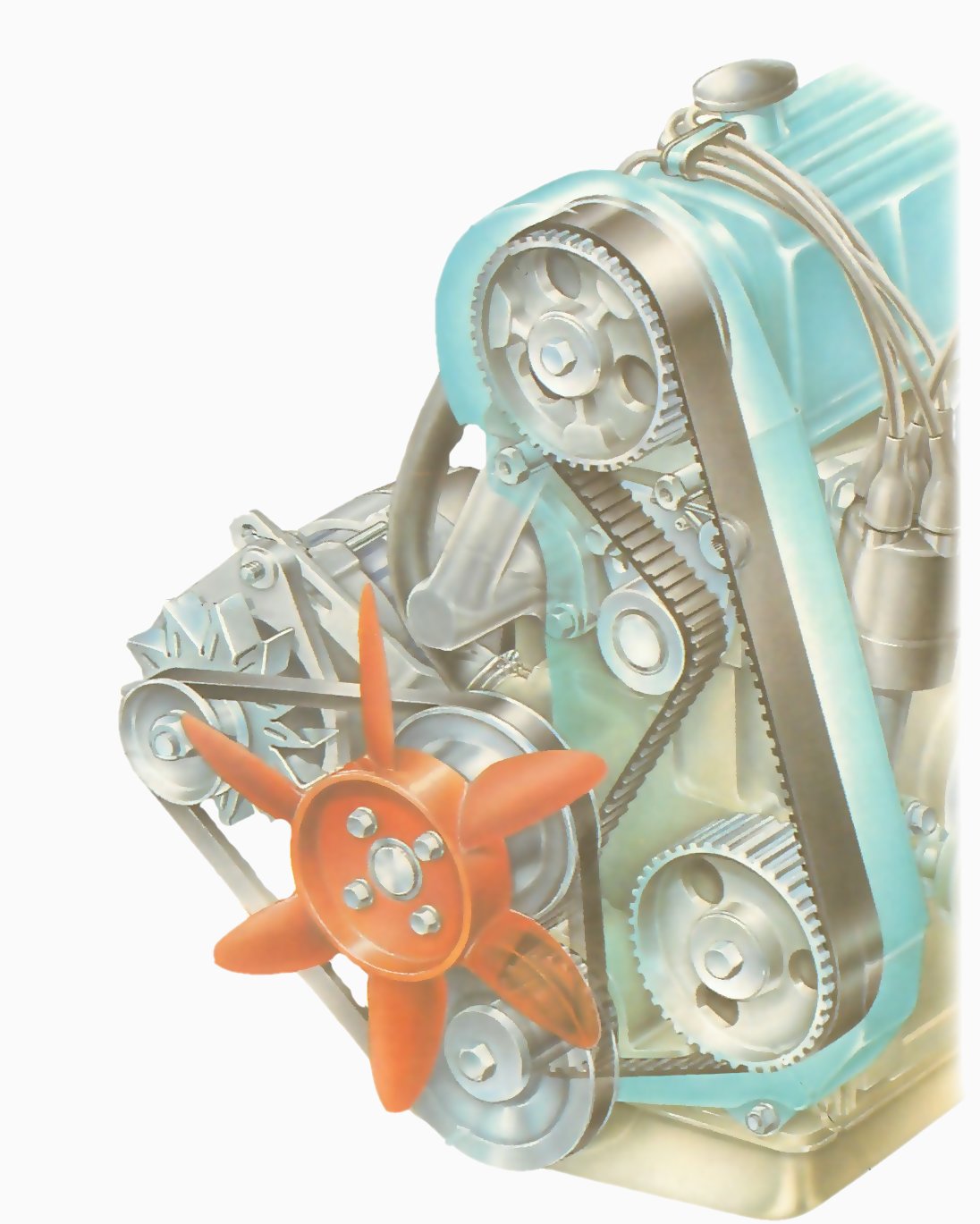

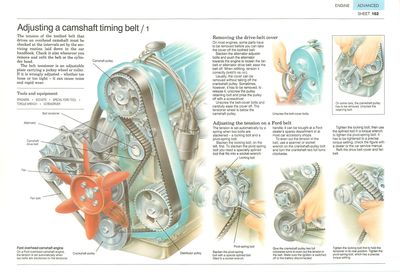

Ford overhead-camshaft engine Alternateur Belt tensioner Distributor pulley Poulie duvilebrequin Fan belt Ventilateurs Camshaft pulley Courroied'entraînementd'arbre àcames

Ford overhead-camshaft engine

On a Ford overhead camshaft engine, the tension is set automatically when two bolts are slackened on the tensioner.

The belt tensioner is an adjustable plate carrying a jockey wheel or roller. If it is wrongly adjusted - whether too loose or too tight - it can cause noise and rapid wear.

Removing the drive-belt cover
