On a fairly new car, covering the underbody with sealing compound will discourage corrosion. It can be sprayed on under pressure or brushed on.

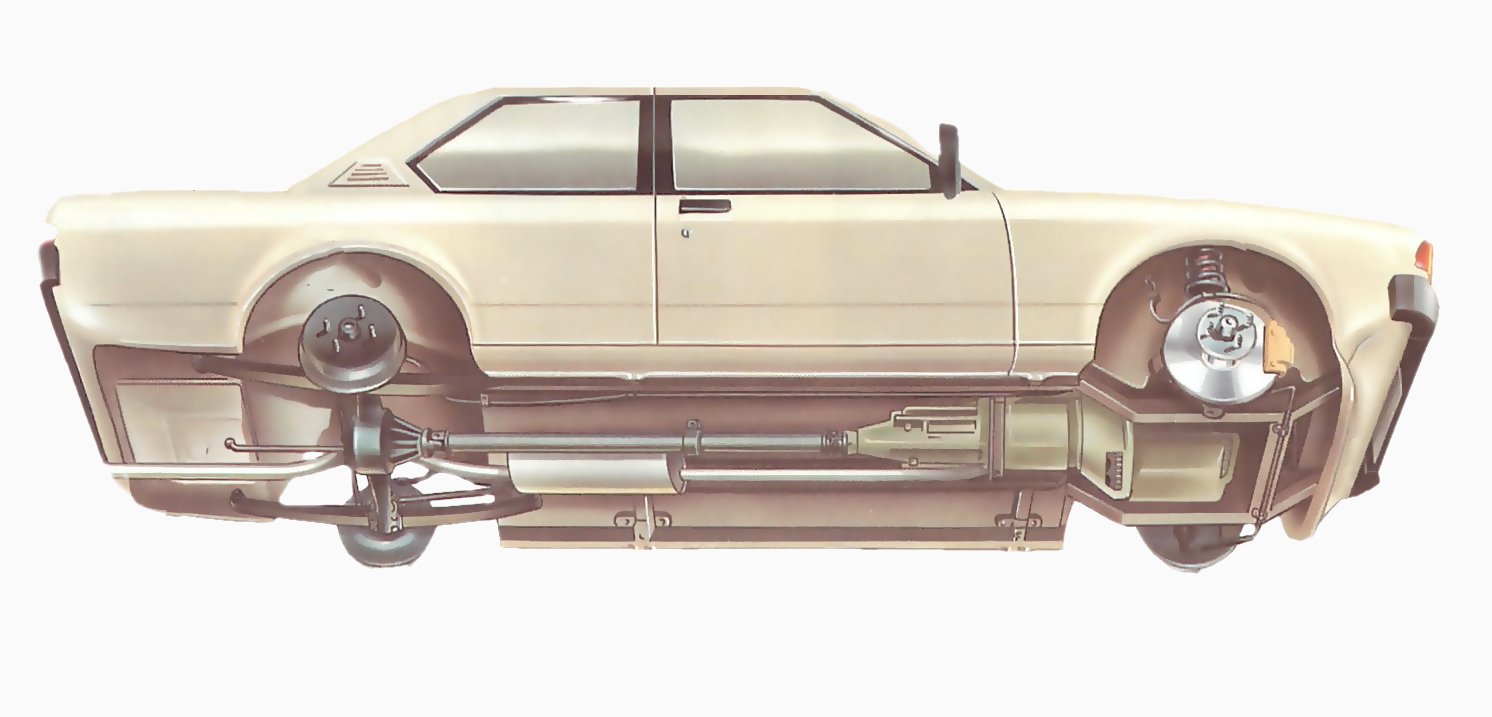

Where to apply underbody sealant Rear wheel arch Front wing Behind the lights Behind thefront valance Front chassis members Sill Main floor Rear floor andpetrol tank

Where to apply underbody sealant

But if there is already considerable rust, applying a sealant will accelerate corrosion rather than protect the underbody against it, because the corrosion will spread unseen and unchecked beneath the covering layer.

Raise the car securely on ramps or axle stands, and check the underside. If the floor and the insides of the front and rear wings are already rusty, do not attempt to seal.

This video course is the best way to learn everything about cars.

Three hours of instruction available right now, and many more hours in production.

  • 4K HD with full subtitles
  • Complete disassembly of a sports car

A sealant will be effective only if the underside of the car is completely clean. Wash it thoroughly with hot water containing a small amount of detergent, and when it is dry apply a proprietary engine-cleaning solvent with a stiff brush. Use a hose to remove the residue.

When the underbody is dry, clean off any remaining film of dirt, oil or grease with a clean cloth moistened with white spirit.

After cleaning, treat any small areas of rust with a proprietary rust remover. When it is dry, apply a coat of pure zinc primer or a rust inhibitor.

Parts of systems attached to or passing beneath the underbody, such as the exhaust system, hydraulic pipes, and the moving parts of the braking and suspension systems, need to be masked before the sealant is applied.

Professionals apply underbody sealant with a spray gun. The best way to do the job at home is with an old 2in. (50mm) paintbrush.

Sealants are sticky to use, and difficult to remove from your skin. Wear old clothes that can be thrown away afterwards, a head covering, protective goggles and rubber gloves.

Cover your working area, such as a concrete drive, with old newspapers, an old dust sheet or plastic sheeting to catch the drips.

Applying the sealant

Prepare the sealant as directed on its container. Following the maker's instructions, start applying the sealant under the floor area starting at one end of the car and working methodically to the other.

Apply generously, painting all unmasked parts. Work in sections, and check each section with a torch to make sure it is completely covered before you move on.

When coating the wings, start at the front with the difficult areas - the top front and top rear corners. Check with a torch that these areas are completely sealed.

Coat the rest of the underwing areas, making sure the wheel-arch edge is well covered. Front wings with a built-in plastic underwing do not need treating.

On completion, remove all the masking when the sealant is set, not forgetting the tape covering the drain holes.

If you have accidentally applied sealant to the paintwork, clean it off with white spirit while it is still soft.

Patching uncoated areas

New, unsealed parts fitted to a sealed underbody should be treated with sealant as soon as possible. If an existing sealing coat has begun to lift, the damaged areas should also be retreated at once.

If possible, use the same type of sealant as that already applied. Mastic-based sealants are not always compatible with factory-applied underbody sealants.

If you patch the sealing coat with a product that is not approved by the car manufacturer, the corrosion warranty may be invalidated.

Peel off damaged or lifting sealant with a knife blade. Work round the area until you reach a sound part. Remove any dirt on the metal with a stiff brush, and use a neutraliser on any rust patches (See Eliminating rust before painting).

Clean the area with a cloth moistened with white spirit, and wipe dry. Mask any moving parts near by, or parts that heat up, before applying the sealant.

For small patches, sealant in an aerosol can is easy to apply.

Preparing the car

Mask the exhaust system with cardboard and newspaper held with masking tape.

Components that get hot or have moving parts must not be coated with sealant. Use newspaper, brown paper, pieces of cardboard and old rags, held in place with masking tape, to protect them. Large parts such as the engine, gearbox and back axle are easy to avoid and need not be masked.

Wrap cardboard around smaller transmission parts such as the propeller and drive shaft.

Remove the wheels, and where sealant is to be applied close to the suspension, tape newspapers over the pivots and cover any grease nipples with tape. Wrap pieces of rag around ball joints in the steering system.

Mask the edges of the underbody to obtain a clean edge where the sealant ends.

Wrap cardboard round coil springs and telescopic dampers. Mask leaf springs and lever dampers with newspaper or old rags. Also wrap cardboard and newspaper round the exhaust system.

Do not apply sealant to any brake pipes. It prevents thorough inspection of the pipes for rust, and if the sealant is penetrated, local corrosion will be accelerated.

Do not coat the handbrake linkage; wrap the cables securely with brown paper and make sure the pivots are masked.

When working inside the wings, drape the or drum assembly and the suspension arms with an old cloth or plastic bag.

Under the wings, mask the backs of any lights, such as headlights, sidelights, side markers and direction indicators.

Do not seal any areas that are used as jacking points. Tape over all box-section drain holes to prevent them becoming blocked with sealant.

Use masking tape to give a clean edge where the sealing coat ends. Apply it all round the edge of the underbody, at wheel-arch edges, on box sections under doors, and under the front and rear bumpers.
