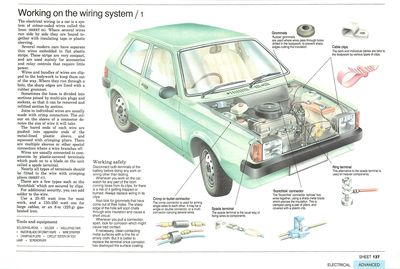

The electrical wiring in a car is a system of colour-coded wires called the loom. Where several wires run side by side they are bound together with insulating tape or plastic sleeving.

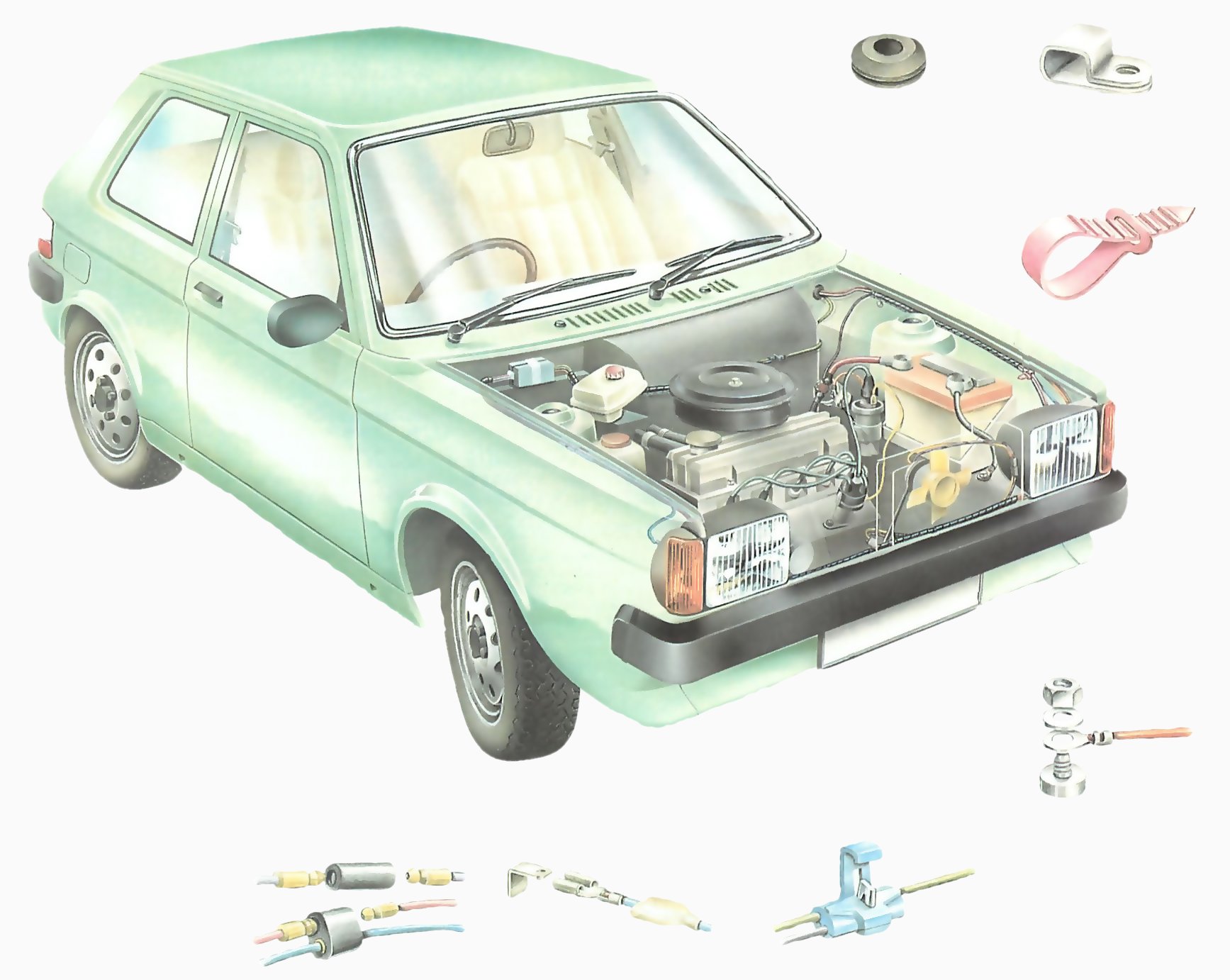

Rubber grommets are used where wirespass through holes drilled in the bodywork,to prevent sharp edges cutting theinsulation. Cable clips The loom and individual cables areheld to the bodywork by various types of clips. Ring terminal This alternative to the spadeterminal is used on heavier components. 'Scotchlok' connector The 'Scotchlok'connector splices two wires together, using asharp metal blade which pierces theinsulation. This is clamped using a pair ofpliers, and covered with a plastic clip. Spade terminal The spade terminal is theusual way of fixing wires to components. Crimp or bullet connector The crimpconnector is used for joining single wires toeach other. It may be a single or doubleconnector, or a multi- connector carryingseveral wires.

Several modern cars have separate thin wires embedded in flat plastic strips. These strips are very compact, and are used mainly for accessories and relay controls that require little power.

Wires and bundles of wires are clipped to the bodywork to keep them out of the way. Where they run through a hole, the sharp edges are lined with a rubber grommet.

This video course is the best way to learn everything about cars.

Three hours of instruction available right now, and many more hours in production.

  • 4K HD with full subtitles
  • Complete disassembly of a sports car

Sometimes the loom is divided into sections joined by multi-pin plugs and sockets, so that it can be removed and refitted section by section.

Joins in individual wires are usually made with crimp connectors. The colour on the sleeve of a connector denotes the size of wire it will take.

The bared ends of each wire are pushed into opposite ends of the metal-lined plastic sleeve, and squeezed with crimping pliers. There are multiple sleeves or other special connectors where a wire branches off.

Wires are usually connected to components by plastic-covered terminals which push on to a blade on the unit called a spade terminal.

Nearly all types of terminals should be fitted to the wire with crimping pliers .

There are a few types such as the `Scotchlok' which are secured by clips.

For additional security, you can add solder to the wire.

Use a 25-65 watt iron for most work, and a 150-250 watt one for large cables, or an 8 oz (225 g) gas-heated iron.

Working safely

Disconnect both terminals of the battery before doing any work on wiring other than testing.

Whenever you work on the car, watch for any part of the loom coming loose from its clips, for there is a risk of it getting trapped or burned. Always replace wiring in its clips.

Also look for grommets that have come out of their holes. The sharp edge of the hole will soon chafe through wire insulation and cause a short circuit.

Whenever you pull a connection apart, look for corrosion which might cause bad contact.

If necessary, clean contacting metal surfaces with a fine file or emery cloth. But it is better to replace the terminal once corrosion has destroyed the surface coating.

Making repairs to the loom

Use a circuit tester to check if single wires are damaged.

The wiring loom itself seldom goes wrong, but after other repairs have been made, a cable may be trapped and its insulation cut through, causing a short circuit.

If this does not blow a fuse the wiring overheats and melts insulation, perhaps starting a fire. A similar result can come from fitting accessories incorrectly, or if power demand is too high for the size of the wire being used.

After many years, insulation may become hard and brittle, particularly where it is exposed to heat, as in the engine bay. Sections, or all of the loom, may need replacing.

The damage caused by overheated wires is easy to find; but if only a single wire has overheated and melted at some point, you may have to use a circuit tester to find the break.

If the damage is in an open run of wiring, you may be able to mend separate wires without taking out a section of the loom.

If it is in any part of the covered sections, you need to remove at least part of the wiring loom.

Label wires before cutting them when working on a section of the loom.

Before you disconnect anything, make absolutely sure you know how to put it back. Number both sides of each connection with labels made of masking tape.

If necessary, make drawings of cable routes and how clips fit.

Use a craft knife or razor blade to cut away the wrapping from the damaged section. Take care not to cut into the plastic cable insulation.

Even if only one wire has overheated, inspect all the others to make sure their insulation is not damaged.

Before cutting out damaged wires, make sure that the colour coding is the same at each end of the damaged section of each wire, and that it is not so discoloured that it is unrecognisable.

If there is any chance of confusion, label both ends.

Cut out all the damaged wires with wire cutters. Spread out the cuts across a bundle of several wires: if many joins are opposite each other their bulk may make it difficult to fit the loom into the car.

If possible, replace wiring with new wire of the same colour. The new wire must be the right size: there are five sizes, depending on current rating.

Repairs in wrapped sections of the loom are the only places where you may join wires by twisting them together and soldering the joint mainly because there may not be room for any other method.

If possible, use an insulated in-line crimp connector.

Test each mended wire with a circuit tester and battery, connected to the nearest connectors either side of the mend.

Re-wrap the exposed section of the loom with self-adhesive or 'clingfilm' PVC insulating tape. Put some layers between the exposed section and adjoining wires - not merely a cover over the top - then fit the loom back into the car.

Reconnect all terminals and clips, then test all the electrical components involved.

If an outlying part of the loom with few wires has been damaged, it may be simpler to replace each wire to the end of the loom instead of inserting a section. If so, use the old, damaged wire as a guide to the length of the new. In an open area of wiring, join old and new with snap connectors.

Fitting new wiring

Fit a rubber grommet when passing wires through a new hole in the bodywork.

When you fit accessories you must use large enough cables. As far as you can, route the new wiring along the course of the existing loom, using the same clips and grommets.

Push a screwdriver blade through the grommet carefully to enlarge it for the new cables, taking care not to damage insulation on existing wires.

If you pass a cable through a new hole, fit the hole with a grommet.

To pass wires up door pillars or behind trim, tape them to a piece of fairly stiff wire, poke it carefully behind the trim or up the pillar, and pull it through at the far end, bringing the wire with it.

Use insulating tape in a spiral to bind wires together.

If you have to lead a new wire along a difficult route - to the rear of the car, for example - you could take the opportunity to lead a spare wire at the same time, for any accessory you might want to fit later.

Cover the end of a spare wire with insulating tape to prevent an electrical short circuit.

Identifying cable sizes

Types of cable 14/30 cable 65/30 cable High-tension (HT) lead The starter cable

Types of cable

Cable sizes are given by two numbers. The first one is the number of strands. The second (which is always the same in car wiring) is the diameter of each strand in millimetres.

Twisting wires together and fitting spade terminals

Methods of joining wires Twist bare ends together and solder them.Cover the joint with insulating tape. Tag connectors are closedround the bare wire withpliers, then soldered. A spade terminal is easy to disconnect andreconnect.

Methods of joining wires

To connect two wires, use a wire stripper to remove about in. (19 mm) of insulation from each wire.

Twist the bare ends together, then use pliers to press the twisted section into a compact shape.

Solder the wires together so that they cannot be pulled apart, using only a little solder to avoid making the joint bulky.

Wind insulating tape in a spiral over the joint.

To fit a spade terminal, slip the insulating cover over the wire and push it up the wire, out of the way. Use a wire stripper to remove about 1/8in. (3 mm) of insulation from the end of the wire.

Lay the bare strands in the inner section of the connector. Use crimping pliers to tighten the two small tongues firmly around the insulated part of the wire.

On the other side of the connector, push the wire strands back and down flat. Hold the connector blade upwards to avoid solder running into the spade part.

Solder the wire to the connector with just enough solder to secure all the strands. Let the connector cool before sliding the cover back.

Fitting a bullet connector

Remove insulation with a wire stripper.

Use a wire stripper to remove about 3/8 in. (10 mm) of insulation from the end of the wire.

Push the wire into the connector so that the strands just protrude from the round end.

Grip the cable, connector uppermost, in a vice or self-locking pliers, so that the connector rests on top of the vice and cannot slide down the wire when soldering.

Inside a bullet connector.

Apply solder on the top of the connector, and let it melt and run down inside.

Trim off the protruding strands with wire cutters.
