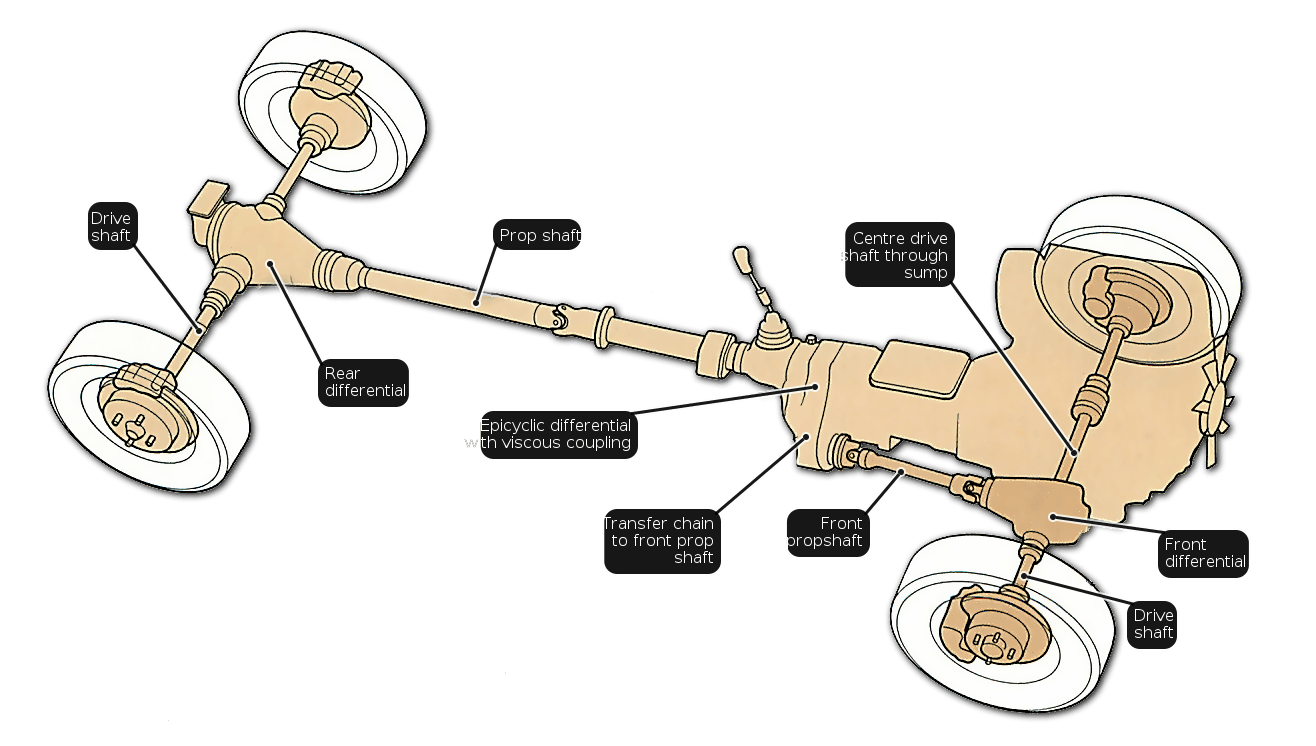

Ford four-wheel drive Arbred'entraînement Reardifferential Prop shaft Epicyclic differentialwith viscous coupling Transfer chainto front propshaft Frontpropshaft Frontdifferential Arbred'entraînement Centre driveshaft throughsump
Télécharger

To add drive to the front wheels of the rear-wheel-drive Sierra and Granada Scorpio, power is taken from the side of the gearbox by a wide transfer chain after running through an epicyclic centre differential and viscous coupling.

A short prop shaft runs forward to the front differential, which is mounted on the right-hand side of the sump. The only way to get power to the left-hand front wheel is to run a drive shaft through the sump itself inside a sealed tube.
